Tecnoelettra Control Panel

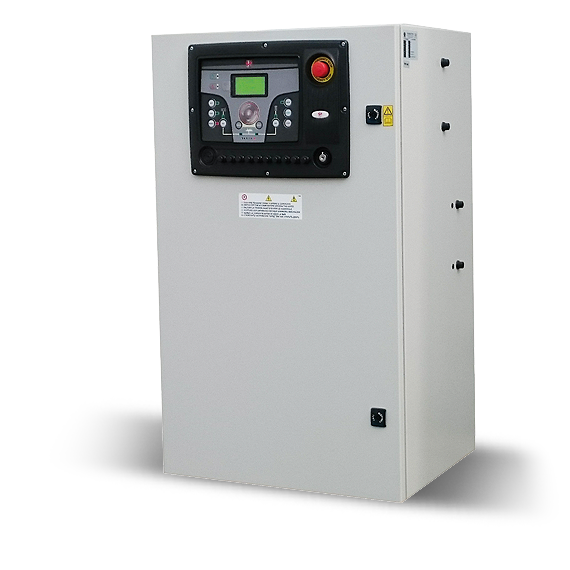

Tecnoelettra AT809A 111kVA 3Ph Generator Control Panel – Automatic Mains Failure

R36,110.00 Inc VAT

The AT809 range of generator control panels is a a complete solution for automating your generator control.

Making use of the TE809 controller the AT809A is extremely versatile and is ideal from controlling diesel powered generators.





In stock

SKU: AT809AT40111ZA Category:
Tecnoelettra

Specifications

The AT809AT40111ZA control panel comes complete with the following equipment:

  • TE809A AMF Controller
    •  TRMS high precision measures
    • Graphical display 128×64 pixels
    • 8 buttons  navigation drive
    • 10 indication LEDs
    • 5 programmable digital inputs
    • 3 analog / digital inputs programmable
    • Programmable static outputs
    • 2 relay outputs
    • CANBUS J1939
    • RS232 and RS485 serial ports for remote monitoring
  • 12VDC 5A Battery Charger
  • Metal enclosure IP55
  • 4 pole contactor ATS with electrical and mechanical interlocks
  • 4 pole mains isolator
  • 4 pole generator isolator
  • 3 load CTs
  • 1 switch 1Ph + N engine preheating 230Vac / 10A
  • 10 protection fuses
  • Emergency Stop
  • Alarm buzzer
