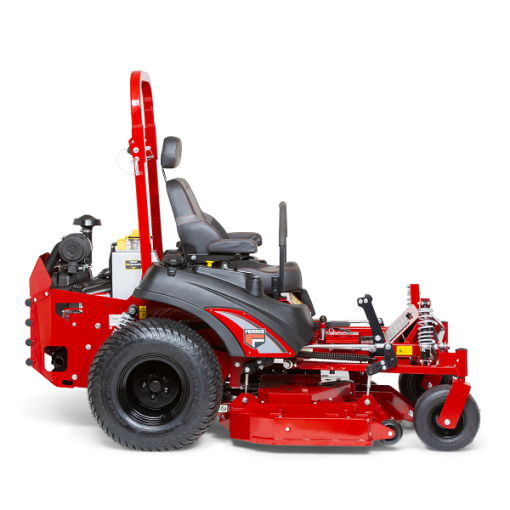

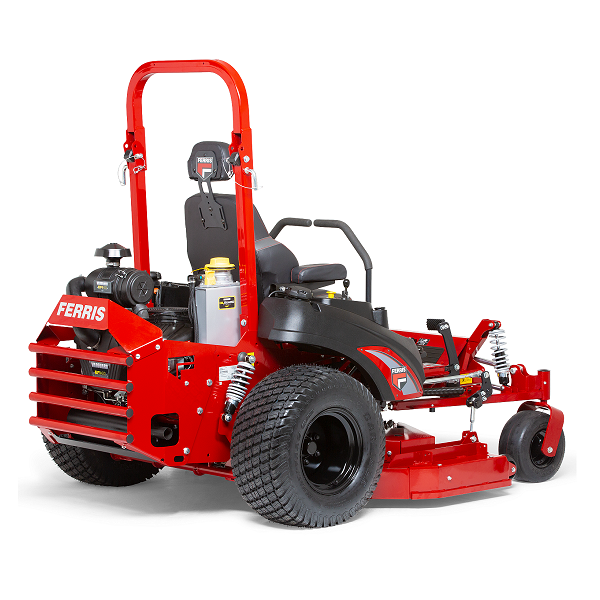

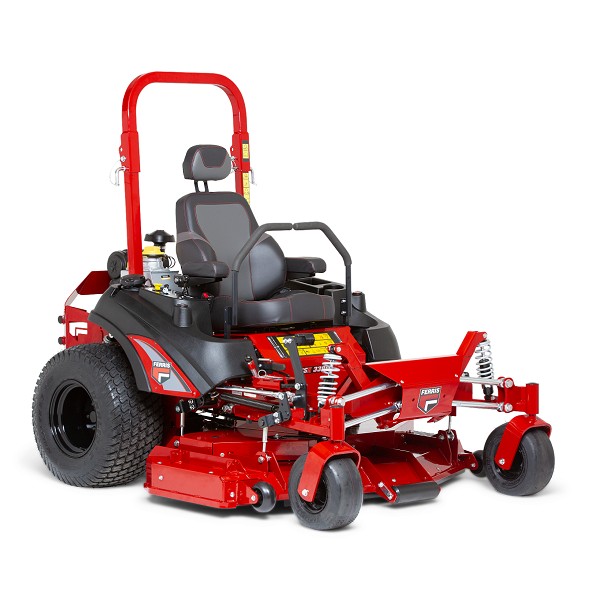

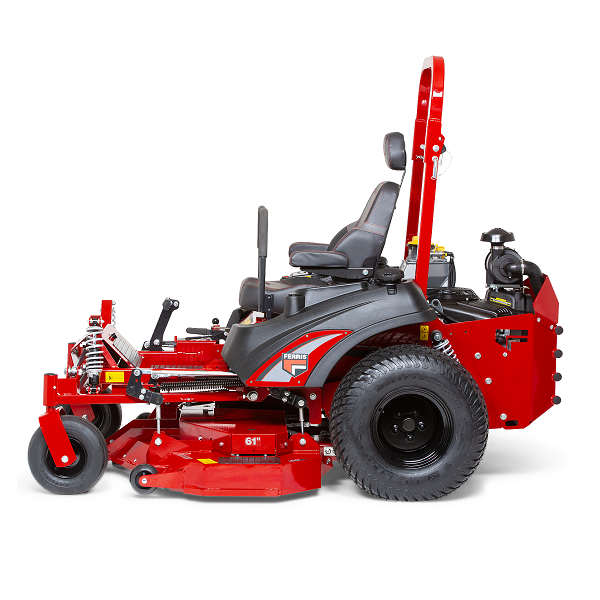

Ferris ISX™ 3300 Commercial Zero Turn Mower with 72″ TRIPLE Deck

R585,350.00 Inc VAT

Ferris ISX3300 Badge

Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty Hydro-Gear® drive system and travel speeds up to 20km/h, the ISX™ 3300 is engineered to increase efficiency and operator comfort.

The all-new “TRIPLE” mower deck offers unique versatility. Rear discharge, side discharge and two levels of mulching are available in one package! This revolutionary convertible mower deck makes it possible to adapt to every circumstance you encounter.

Ferris’ new 2-belt decks on the Ferris® ISX™ 3300 come with a three years (36 months) or 300 hours warranty, whichever occurs first.

The Ferris ISX™ 3300 is available on Ferris Finance.

The ISX3300 is currently available on special order only. Contact our sales department for lead times.

Available on backorder

SKU: 5902036+5901932 Category:
Ferris

Features

ENGINE

  • Powered by 37 HP* air-cooled Vanguard™ BIG BLOCK™ 993cc
  • EFI V-Twin petrol engine
  • Two-stage industrial air-cleaner
  • Easy-to-use oil drain
  • Rugged twin 21 litre fuel tanks (42 litres total).
    Vanguard Oil Guard System – Extending oil exchange interval to 500 hours.

MOWER DECK

  • 183 cm cutting width with iCD™ Technology
  • Foot-operated deck lift, with adjustable pedal, can change cut height in 0,6 cm increments from 3,8 – 12,7 cm
  • TRIPLE mowing technology: All-in-One mower deck comes with side discharge, rear discharge and mulching capabilities out of the box
  • Hercules™ II spindles with greaseable bearings for longer usable life
  • 2-belt deck drive system improves belt life and is more dependable.

FOREFRONT™ SUSPENSION SYSTEM

The system utilizes four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

The system utilizes four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

Specifications



 ENGINE
Make Vanguard® – Petrol
Model BIG BLOCK™ EFI with Oil Guard System
Horsepower 37 HP*
Cylinders / Displacement 2 Cylinders V-Twin / 993 cc
Cooling Air-cooled
PTO Electric PTO clutch
Starting Electric
Fuel Capacity 42 Litres
 MOWER
Cutting width 183 cm / 72” TRIPLE iCD™
Deck Configuration Side discharge, Rear discharge and Mulching
Cutting Height 3.8 – 12.7 cm
Deck Construction 3.4 mm fabricated construction, full width double top deck,
12.7 mm scuff guards, 12.7 mm leading edge, overlap welded corners
Mower Spindles Cast-iron 257 mm with 30.16 mm shaft
Deck lift system Foot Operated
 SUSPENSION & DRIVE TRAIN
Suspension ForeFront™ Suspension System – Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coil-over shocks
Transmission Independent Hydro-Gear® Commercial ZT-5400™ trans-axles with industrial oil filter and remote oil cooler
Drive Axles 34.93 mm drive axles with 5 bolt wheel hubs
Drive Tyres 26 x 12.00 – 12 (4 ply)
Caster Tyres 13 x 6.50 – 6 (4 ply)
 GROUND SPEED
Speed – Forward 0 – 20 km/h
Speed – Reverse 0 – 10 km/h
 DIMENSIONS
Overall length 215 cm
Overall width 186 cm
Dry weight 788 kg
 OPERATOR CONTROL & COMFORT SYSTEMS
Roll-Over Protection Structure Standard, foldable with seat belt
Instrumentation Fuel level gauge in each tank, hour meter,
engine malfunction indicator gauge
Controls Seat activated engine kill, PTO clutch safety switch,
neutral and parking brake safety circuit
Parking Brake / Safety Circuit Internal wet disc brake in transaxle

Warranty



Vanguard EFI Engine 3 Year Engine Manufacturer’s Limited Warranty
Deck Drive Belt (2-Belt) 3 Year Limited / 300 hours, whichever comes first.

Parts & labour in year one.

Parts only in years two and three.
Balance of machine 4 Year or 500 hours Limited Warranty,
whichever occurs first.Unlimited hours during the first 2 years.
Coil-over-shocks and all suspension related
components		 5 Years / Unlimited hours.
Belts, Tyres, Brake Pads, Battery & Blades 90 days.
See operators manual for full warranty policy.



Downloads

Ferris 5902036 Zero Turn Operator’s Manual
Ferris 5902036 Zero Turn Parts Manual

Briggs 61E877-0005-J1 Engine Operators Manuals
Briggs 61E877-0005-J1 Engine Parts Manuals

Ferris 5901932 72″ Cutting Deck Parts Manual

Ferris 5902036 Declaration of Conformity
